AVPro Edge 18Gbps 4x2 Auto Switching HDMI Matrix Switcher
- — Hand curated product selection
- — 3D secure transactions
- — Aftership™ tracking
- — Competitive pricing
- — Expert support
Smarter Source Switching. Effortless Entertainment.
Route four HDMI sources to two outputs while preserving high-quality video to a display and a compatible audio path to an older receiver.
The AC-MX-42 is a professional AVPro Edge solution designed for 4×2 18gbps hdmi matrix and legacy-avr bypass. Route four HDMI sources to two outputs while preserving high-quality video to a display and a compatible audio path to an older receiver. It is intended for integrators who need to match the signal path to the connected equipment rather than rely on a generic consumer accessory.
Purpose-built AV performance.
Reliable performance begins with a system design that considers the source signal, destination capabilities and cabling. For this model, the most important considerations are four hdmi source inputs, two independently usable outputs and 18gbps-class signal path. The specifications and feature descriptions below distinguish the capabilities of this model from other products in the AVPro Edge range.
Choosing the correct equipment is particularly important when different rooms, receivers or displays have different capabilities. The AC-MX-42 is best evaluated as part of the complete signal chain: source, transport or routing hardware, control system and final playback equipment.
Features and capabilities
| Four HDMI source inputs | Connect players, consoles, computers or streaming sources to one switching point. |
| Two independently usable outputs | Route sources to two HDMI destinations in a compact AV system. |
| 18Gbps-class signal path | Support high-bandwidth 4K video workflows without forcing the main display through an older AVR. |
| Legacy receiver bypass | Send full-quality video directly to a modern screen while feeding an alternate HDMI output to an older receiver. |
| Output downscaling | Reduce video resolution on the secondary output when required by legacy equipment. |
| Audio preservation | The manufacturer describes leaving audio unchanged when video is downscaled on the legacy-device path. |
| Output equalization | Signal equalization and amplification help maintain link stability over suitable HDMI cabling. |
| Flexible home-theater routing | Useful when a premium TV/projector and a non-18Gbps audio receiver must share the same sources. |
Connections and system design.
Connect sources to the matrix and plan each output for its destination's video and audio capabilities. Use supported EDID, scaling and automation controls to accommodate mixed generations of equipment.
Verify HDMI bandwidth, HDCP, output processing and any required HDBaseT receivers for the specific source/display combination.
Technical specifications
| Manufacturer / model | AVPro Edge / AC-MX-42 |
|---|---|
| Matrix configuration | 4 HDMI inputs × 2 HDMI outputs |
| Bandwidth class | 18Gbps HDMI |
| Video processing | Secondary-output video downscaling described in catalog |
| Audio behavior | Audio preserved on downscaled path, per catalog |
| Signal management | HDMI output equalization/amplification |
| Typical use | 4K display plus legacy AVR |
Specifications reflect the supplied product catalog and are configuration-dependent where indicated. Confirm current manufacturer documentation, firmware and accessory compatibility before final system design.
Where this product fits.
Centralized whole-home video systems: Connect players, consoles, computers or streaming sources to one switching point.
Dedicated home theaters with shared sources: Send full-quality video directly to a modern screen while feeding an alternate HDMI output to an older receiver.
Conference and commercial display routing: Signal equalization and amplification help maintain link stability over suitable HDMI cabling.
Plan the complete solution.
Connect sources to the matrix and plan each output for its destination's video and audio capabilities. Use supported EDID, scaling and automation controls to accommodate mixed generations of equipment.
Verify HDMI bandwidth, HDCP, output processing and any required HDBaseT receivers for the specific source/display combination.
Package contents: Consult the current manufacturer box-content list for included power supplies, brackets, adapters, cables and other accessories. Components not explicitly listed in the supplied catalog have not been assumed to be included.
Professional AV solutions.
Need help selecting compatible AVPro Edge equipment, planning your cabling or integrating the system with automation? Contact Automated Now for product selection and professional integration assistance.
Manufacturer model: AC-MX-42

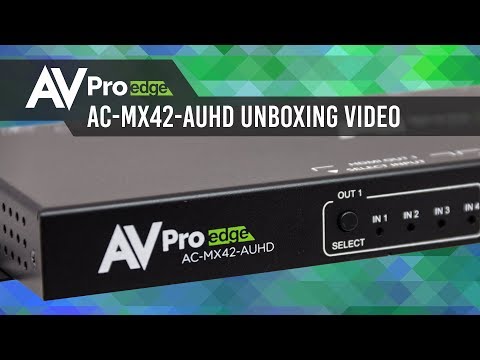

4x2 Matrix Switcher 4K60 (4:4:4) - Unboxing Video
The AC-MX42-AUHD is a true 4x2 HDMI matrix switch. Supporting HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ... ) to be shown on any of the connected displays. This matrix equalizes and amplifies the output to ensure the HDMI signal can be transmitted through long HDMI cables without loss of quality.
